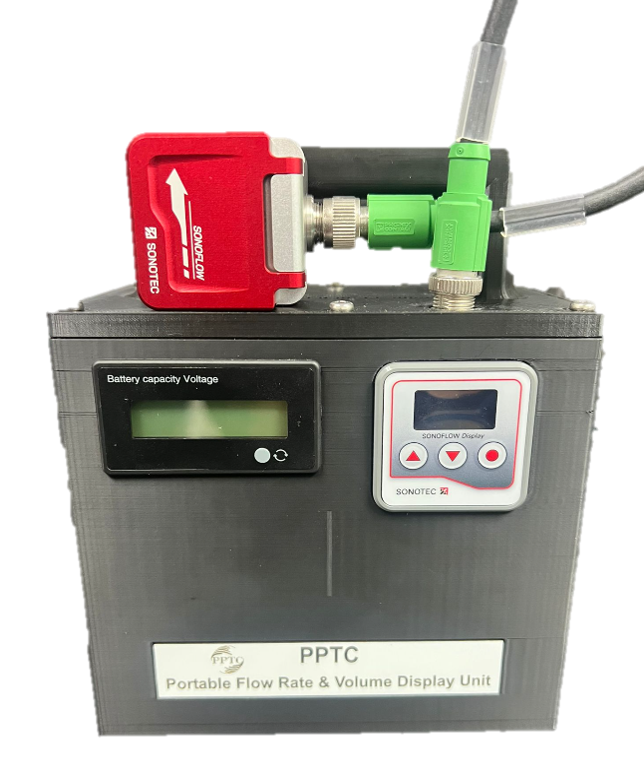

Portable display unit for flow sensors designed for preventive maintenance, providing convenient verification of real-time flow rate and totalized volume. Compatible with both soft tubing and hard tubing with inlay, the unit offers flexible integration for various fluid handling applications.

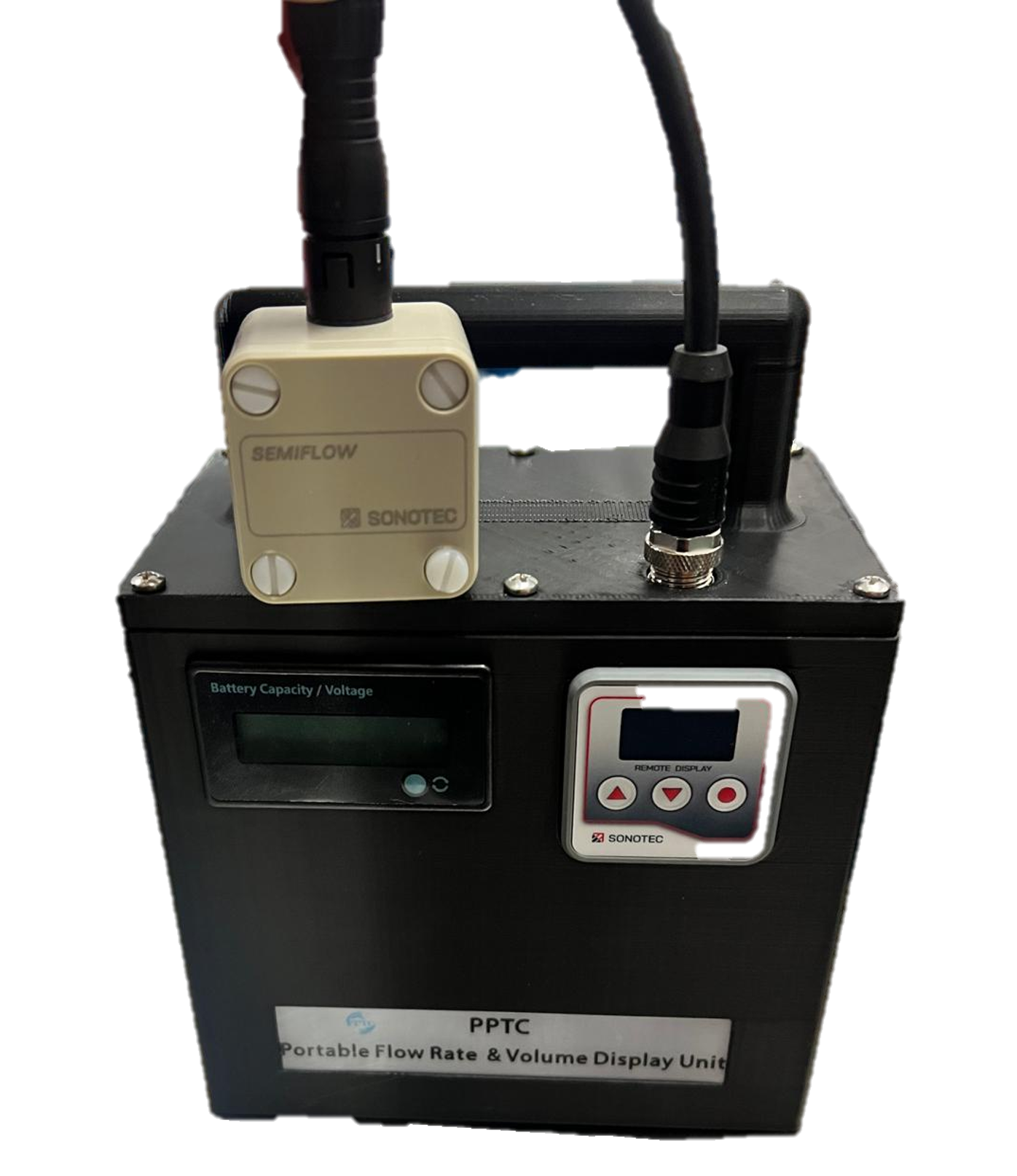

Portable display unit for flow sensors, designed for preventive maintenance applications to monitor real-time flow rate and totalized volume. Compatible with hard tubing materials such as PFA. Sensor constructed from chemically resistant material (PP-H).

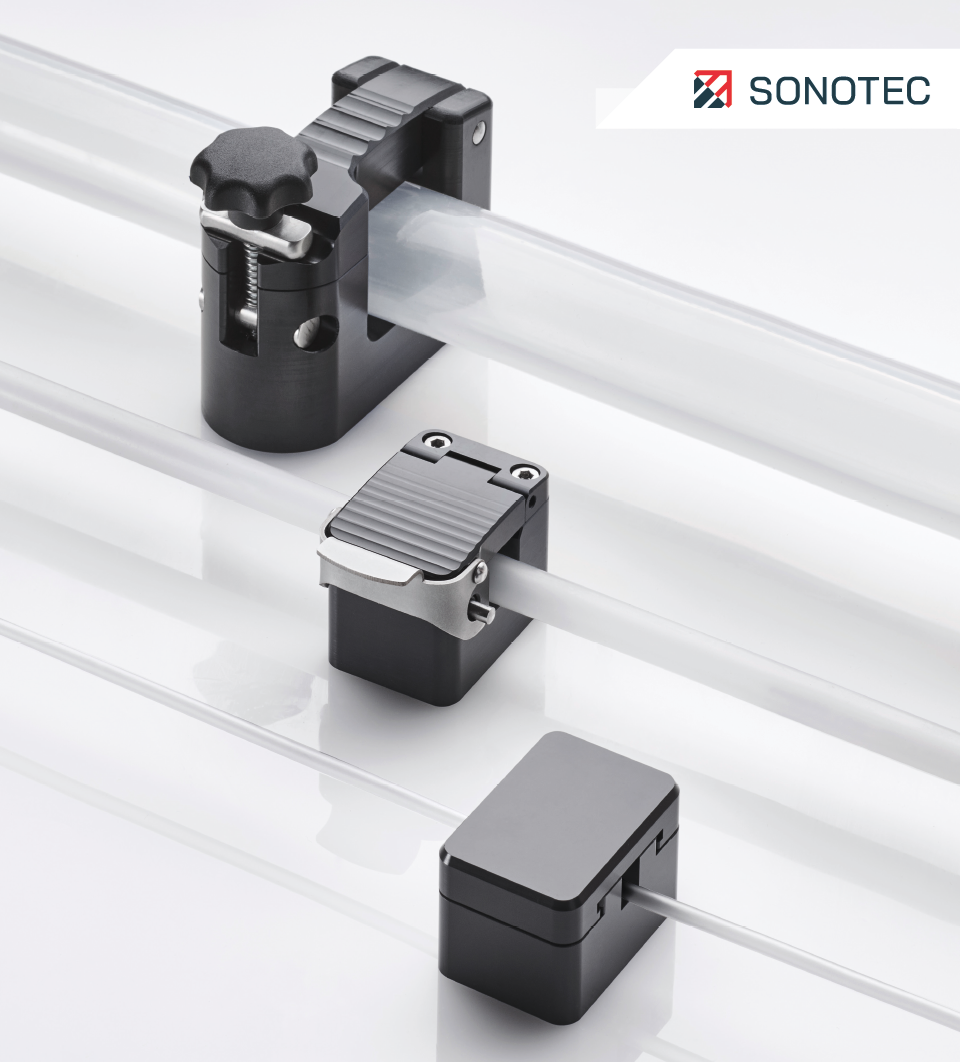

The air bubble detector SONOCHECK® ABD06.xxx with analogue output is used to detect air, gas bubbles and foam in liquid filled tubes made of synthetic materials. It also serves as wet/dry indicator. Typical applications are in biotechnology or industrial applications in the automation, semiconductor or food and beverage industry (e.g. filling processes of glue, paint and lubricants) are typical. The SONOCHECK® ABD06 with analog output is designed as a component for fixed installation in machines and equipment. The sensor has no contact with the liquid. The sensors have a configurable analogue output for the distinction of bubble size in a wide range and are suitable especially for the use on hard

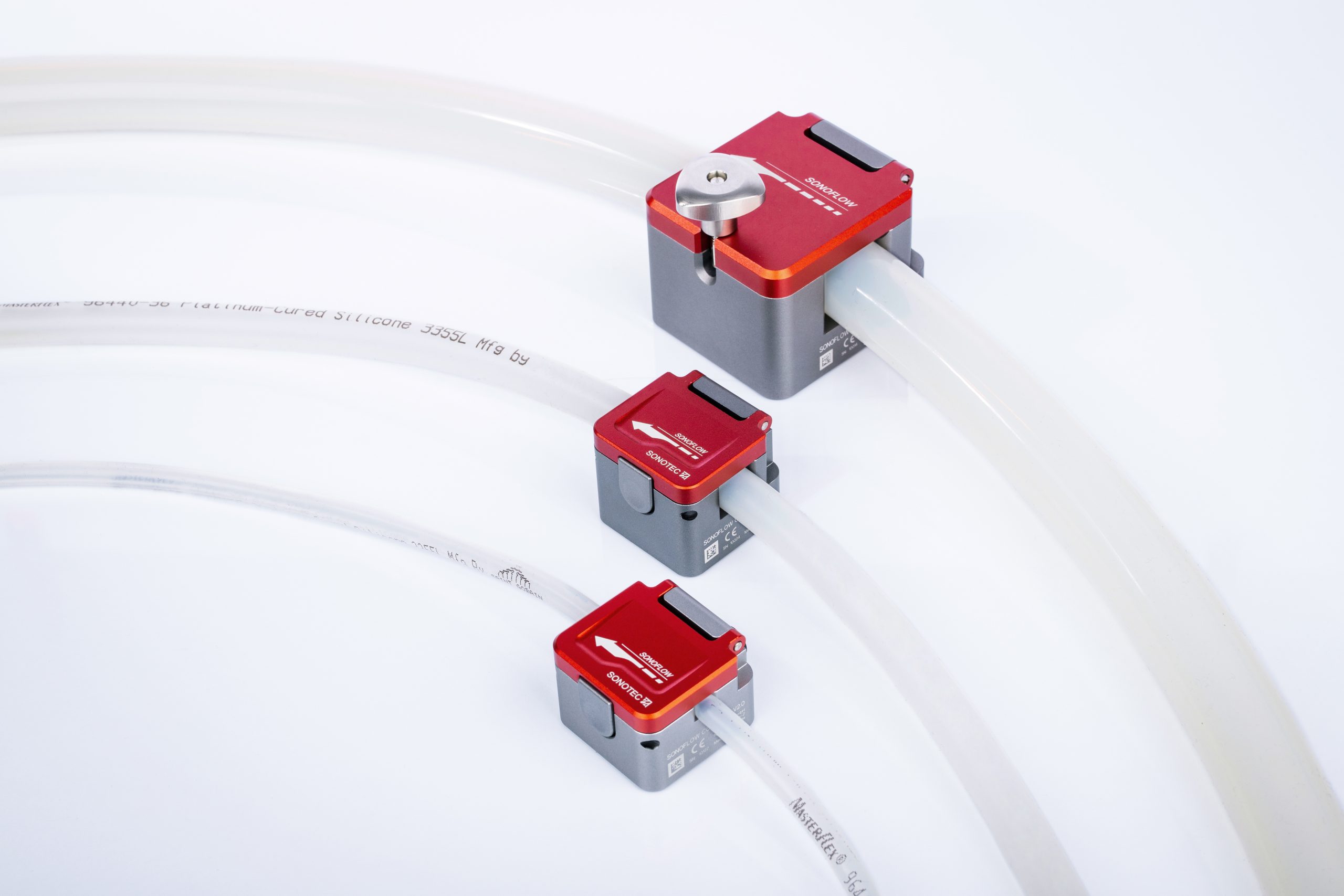

Model : co.55/xxx

  • Easier to insert tubing
  • Soft Tubing
  • Hard Tubing with Inlay
  • Interface : 4 to 20ma/Modbus RTU/Switching Output, ethernet IP (optional)
  • Calibration Certificate
  • Material : PVC, Silicone, PTFE, PFA, FEP, TPE, Tygon, PE, etc. (not sterilized)
  • Tubing Size : OD1/8″ to 35mm
  • Media : Liquid

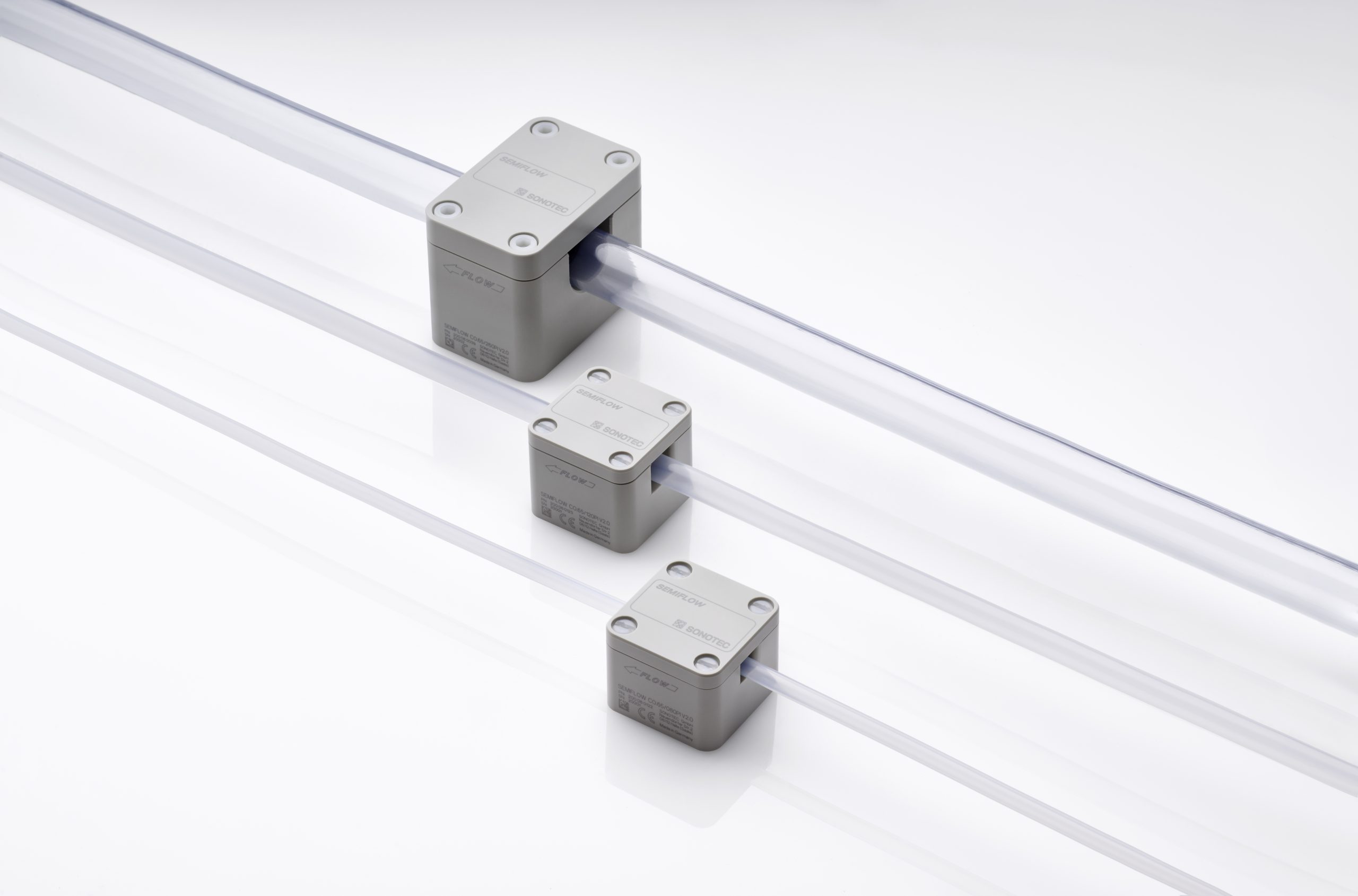

Model : co.65/xxx

  • Chemical Resistant Material, PP-H
  • Hard Tubing
  • Interface : 4 to 20ma/Modbus RTU/Switching Output, ethernet IP (optional)
  • Calibration Certificate
  • Material : Homogeneous rigid plastic tubing (e.g. PFA, PTFE, PA, PU)
  • Tubing Size : OD1/4″ to 61mm
  • Media : Liquid

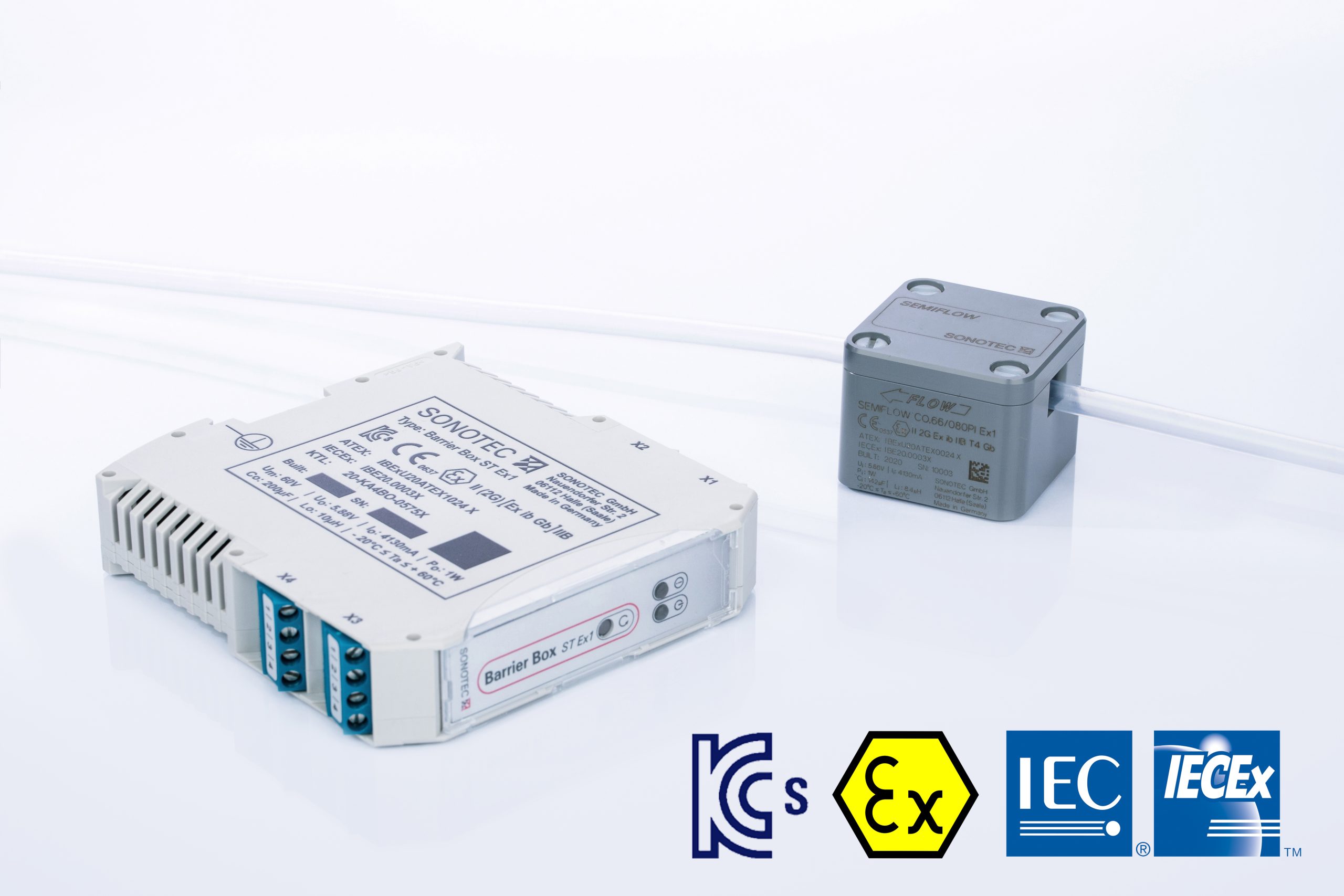

Model : co.66/xxx

  • The sensors used with the Barrier Box ST Ex1 are protected against explosion hazard by gases, vapors or liquids (gas group IIB). The device protection level is “Gb” for use in Zone 1 in compliance with ATEX, IECEx and KTL standards.
  • Chemical Resistant Material, PP-H
  • Hard Tubing
  • Interface : 4 to 20ma/Modbus RTU/Switching Output
  • Calibration Certificate
  • Material : Homogeneous rigid plastic tubing (e.g. PFA, PTFE, PA, PU)
  • Tubing Size : OD1/4″ to 34mm
  • Media : Liquid
